Renishaw PH20

The PH20 probe head offers unique ‘head touches’ for rapid touch-trigger measurement and fast infinite 5-axis positioning to guarantee optimal feature access. Its compact design makes it suitable for new CMM purchases and as a retrofit to the vast majority of existing CMM touch trigger installations.

CMM-Manager and PH20

PH20 Advantages and Details

  • 3 times throughput increase
    • 5 axis tip index
    • Fast Head Touches
    • Fixed Quill Measurement
    • Inferred Calibration
  • Ease of use
    • Auto Probe Path Planning
    • Pick from CAD to Measure
  • Touch Trigger

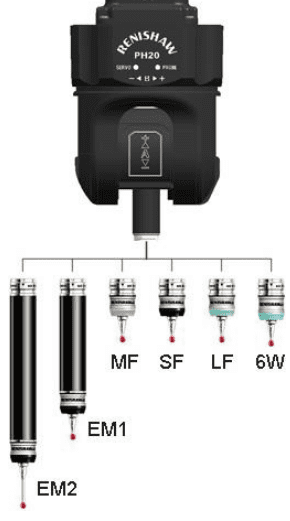

    • TP20 Stylus Modules
    • 50 – 200mm reach
  • MCR20 Probe Rack Compatibility
  • Renishaw UCC T5 CMM Controller
PH20 - Path Planning
